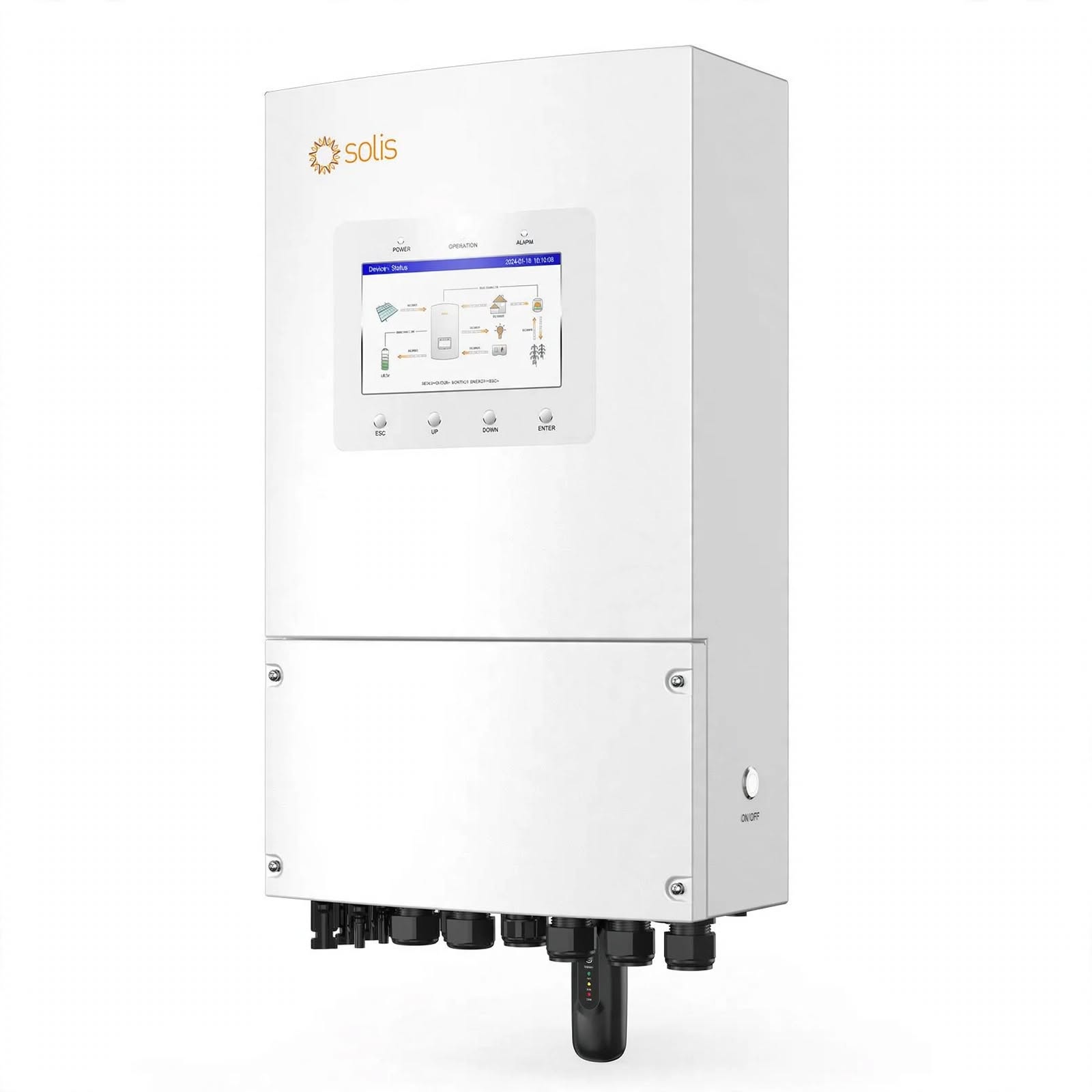

The Solis 10kW S6 Hybrid Inverter is a reliable, high-performance solution for residential solar and battery storage systems. It offers an ultra-fast 10ms automatic UPS backup power supply, smart generator controls, and deep compatibility with low-voltage 48V lithium battery banks. With its rugged IP66 waterproof design and support for up to 20kW of solar panel inputs, it guarantees reliable energy independence and seamless savings during outages.
10 kW continuous power (Apparent AC power: 10 kVA)
Max PV Input Power
Supports up to 20 kW DC solar array (16 kW usable input)
MPPT Trackers
2 independent MPPTs with a wide tracking range of 90V to 435V
Max DC Current
21A per MPPT input, optimized for high-power modern PV modules
Max DC Input Voltage
500V
Battery Compatibility
Low-voltage lithium-ion or lead-acid batteries (40V to 60V nominal)
Battery Current
Max charge and discharge current of 210A
Maximum Efficiency
96.2% peak efficiency (96.1% EU efficiency)
Ingress Protection
IP66 rated dust and waterproof chassis
Core Features
UPS-Level Off-Grid Backup: Delivers seamless transitions during power cuts with an automatic switching speed of less than 10ms.
Peak Surge Capability: Handles up to 200% temporary overload (up to 20 kW) for 10 seconds to start heavy inductive loads like motors or air conditioners in off-grid mode.
Generator Integration: Features standalone automatic generator control links for extended battery backup cycles during long-duration utility blackouts.
System Scalability:Supports parallel operation for up to 6 units, letting you scale both single-phase capacity or establish larger microgrids.
