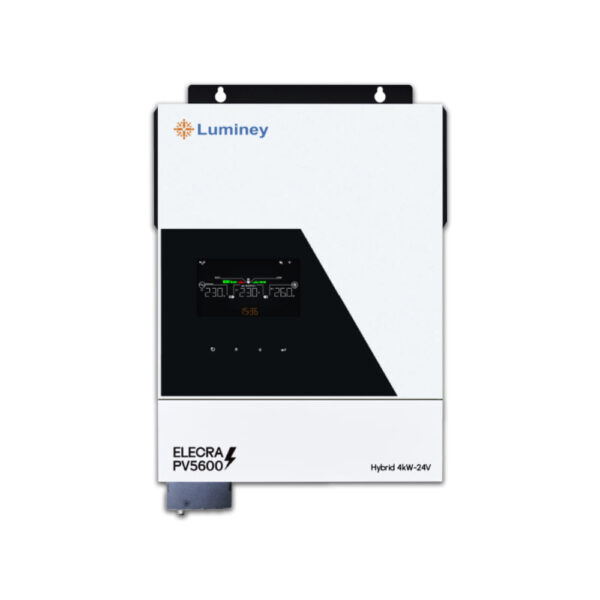

The Luminey Elecra PV5600 is a high-performance 4kW single-phase hybrid solar inverter optimized for residential backup and smart energy management. It supports a 5,600W maximum solar input and operates efficiently on a 24V lithium or lead-acid battery system, with the flexibility to run without batteries connected. The unit features a unique dual AC output design to isolate essential loads, a built-in WiFi monitoring module, and a vivid 4.3-inch color display for effortless tracking.
Warranty; 1.5 year product + 10.5 year service warranty
MPPT Voltage Range: 60 ~ 450 VDC (Max Open Circuit Voltage: 500 VDC)
Maximum Charging Current: 120A Solar / 100A AC
Peak Efficiency: 90% – 93%
Output Waveform: Pure Sine Wave
Battery Compatibility: Supports Lithium-Ion, LiFePO4, and traditional Lead-Acid batteries
Core Features
Smart Dual Outputs: It features an advanced dual AC output configuration that allows installers to physically separate essential, critical loads (like lights, fans, routers) from heavy loads to protect your backup duration.
Built-in Monitoring: Features a 4.3-inch colored touch-button LCD display for real-time local statistics, alongside an integrated WiFi module for online monitoring via an iOS/Android application.
Protection Systems: Equips an integrated Battery Management System (BMS) with overcharge, over-discharge, short-circuit, and overheating protections.
Physical Design: Rated with IP21 protection for indoor installation.
