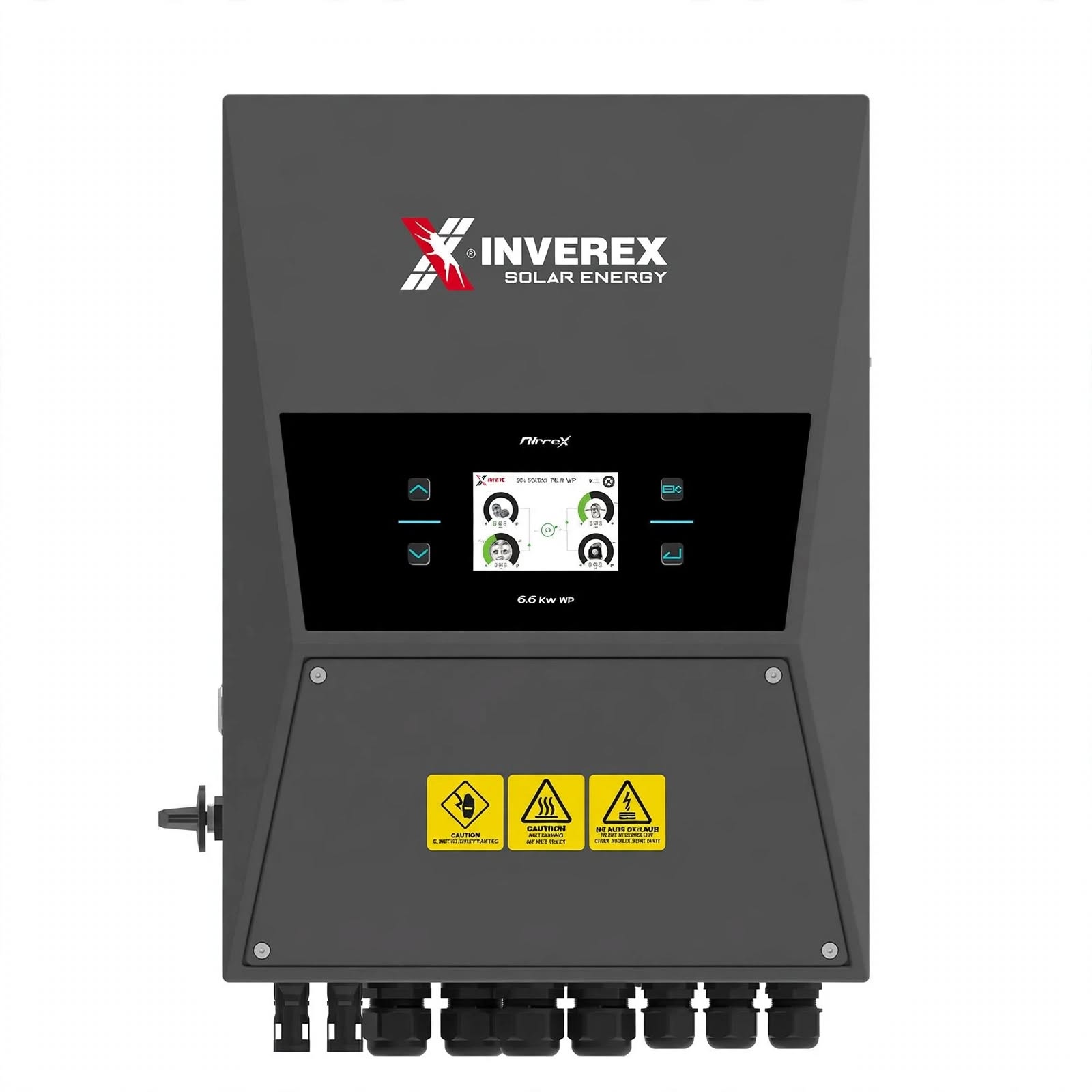

Inverex Nitrox 6.6KW Hybrid Inverter

Description

Core Operational Features

• Advanced Multi-Mode Adaptability: Operates as a grid-tied system, an off-grid backup powerhouse, or a basic battery-free unit during direct sunlight hours.
• Intelligent Load Scheduling: Outfitted with 6 distinct time-of-use slots allowing users to schedule precisely when to pull power from solar, batteries, or the public grid to bypass peak electricity tariffs.
• Rugged Environment Build: Built with an IP65 certified dust and waterproof chassis, making it suitable for outdoor installation under various Pakistani climatic environments.
• Extreme Thermal and Acoustic Profile: Features smart air cooling that safely functions in temperatures ranging from -40°C to +60°C while generating minimal acoustic hum (<30 dB).
• Massive Parallel Scale: Supports up to 16 identical units stacked in parallel to easily expand your facility’s system capacity later on.
• Dual Output & Generator Integration: Safely handles high-surge inductive loads up to 2× its rated power capacity for 10 seconds. It also accepts a direct auxiliary Diesel Generator (DG) input to recharge batteries during prolonged cloud cover.
• Smart App Connectivity: Integrates with monitoring stick loggers using the SOLARMAN Smart App platform via built-in RS485/RS232/CAN networks and optional Wi-Fi modules.

Specifications

• Rated Output Power: 6,600 W (6.6 kW)
• Max. AC Apparent Power: 7,260 VA
• Max PV Input Power: 10,560 W (up to 13,200W panel capacity depending on exact sub-variant configurations)
• Max. DC Input Voltage: 500V DC
• MPPT Voltage Range: 150V – 425V (Start-up at 125V)
• Number of MPPT Trackers: 2 MPPTs (Dual inputs for varied roof angles)
