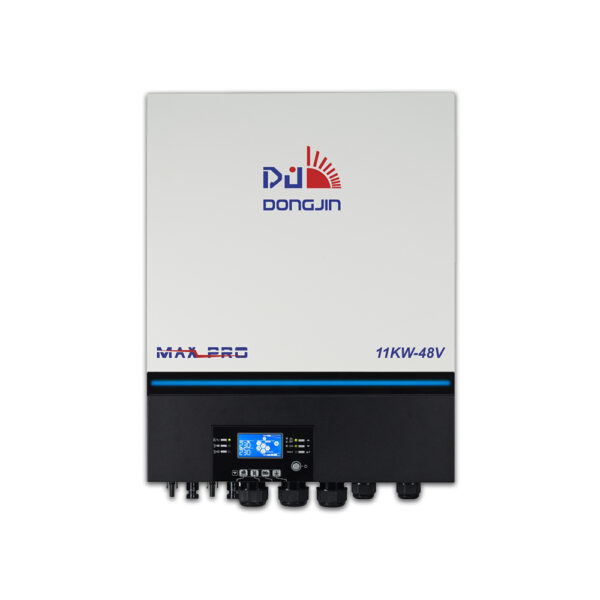

Dongjin Max Pro 11KW Hybrid Inverter IP21

Categories: , ,
The Dongjin Max Pro 11kW is a high-capacity hybrid solar inverter delivering a robust 11,000W pure sine wave output for demanding home and commercial setups. It features a built-in 150A MPPT solar charge controller and versatile dual AC outputs to intelligently prioritize your critical appliances. Designed for maximum flexibility, it can operate with or without batteries and supports parallel scaling for up to six units. It also includes integrated WiFi monitoring and a customizable RGB LED status bar for seamless, real-time tracking.



Warranty: 2 years product + 3 years service warranty

In Stock

₨ 230,000

Description

Key Features

  • Power Capacity: 11,000VA / 11,000W pure sine wave output
  • Solar Charger: Built-in 150A MPPT solar charge controller
  • PV Input Voltage Range: Wide window of 90VDC to 450VDC
  • Battery Support: 48V standard operational battery system with specialized BMS communication ports (CAN-BUS, RS485, RS232)
  • Scalability: Supports parallel connectivity for up to 6 units to scale total power output
  • Outputs: Dual AC output functionality to prioritize critical loads during outages
  • Monitoring & Control: Built-in WiFi for mobile app tracking, USB On-The-Go (OTG) data logging, and a detachable LCD module.
  • Aesthetics: Features a modern, customizable RGB LED bar on the front panel to view status at a glance.
  • Built-in Protections: Includes anti-dust filtering kits, automatic restart on AC recovery, overload protection, and short-circuit safeguards
